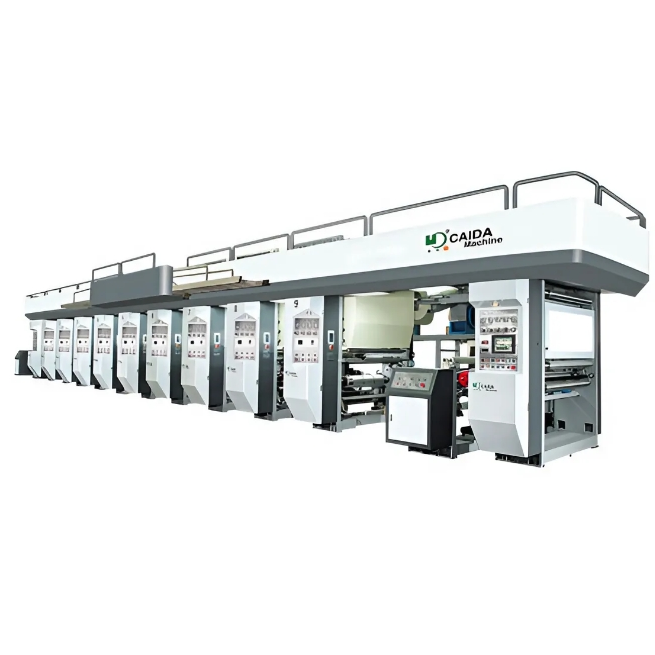

เครื่องพิมพ์ 9 สี หน้า 800 > CDRP-FLYING-850-9

PRODUCT INFORMATION

1. Maximum web width: 800 mm
2. Printing Colors: 9 Colors
3. Length of guiding roller: 900mm
4. Maximum machine speed: 350m/min
5. Maximum printing speed: 300m/min
6. Web flow direction: From left to right
7. The printing cylinder: Circumference: 380-940mm,
   Width: 600-850mm
8. Register accuracy: Vertical of automatic register: ±0.1mm
   (the whole machine) Horizontal of automatic register: ±0.1mm
   (the whole machine)
9. Maximum web diameter: ф800mm
10. Web rectify a deviation: Edge position control (EPC)
11. Rewinder and unwinder mechanisms: Reversible independent turret with double working positions
12. Rewinder and unwinder Cutter: Upper and down cutter for both side splice
13. Printing ink feed: Diaphragm pump ink circulation
14. Ink scraper automatic oscillation: ±5mm
15. Impression roller device: Single Impression roller vertical rise and fall
16. Pressure of printing: 800kg/fully width
17. Tension of scope control: 3-30kg
18. Web splicing: Unwinder and rewinder with automatic splicing
19. Web paper core and assemble form: no-shaft pneumatic conic top type clamping, Internal diameter 76 mm, external 92mm, air expand
20. Dry form: Drying by electricity heating
21. Electric power: 22kw/color
22. The total power of electricity heating: (full-load running) about 198KW
23. The total power of motor (full-load running): about 104KW
24. The total power of blower (full-load running): about 62KW
25. The total power of machine (full-load running): about364KW
26. Graphic vision device: Sumitomo Heavy Industries,Ltd.
27. Video Web Inspection System: BST PS5000
28. The machine dimension: approx 21800×4500×3280mm (9 colors)

The Printing materials

• BOPP 20-60 micron meters
• BOPA 15~60micron meters
• CPP 20-60 micron meters
• Nylon 40~100μm
• PET 12-60 micron meters
